Nanofiltration & Ultrafiltration Nanofiltration Softening Color Removal

Nanofiltration (NF) System

Selective nanofiltration for softening, color and organics removal with partial desalination.

SKU: NF-SYS

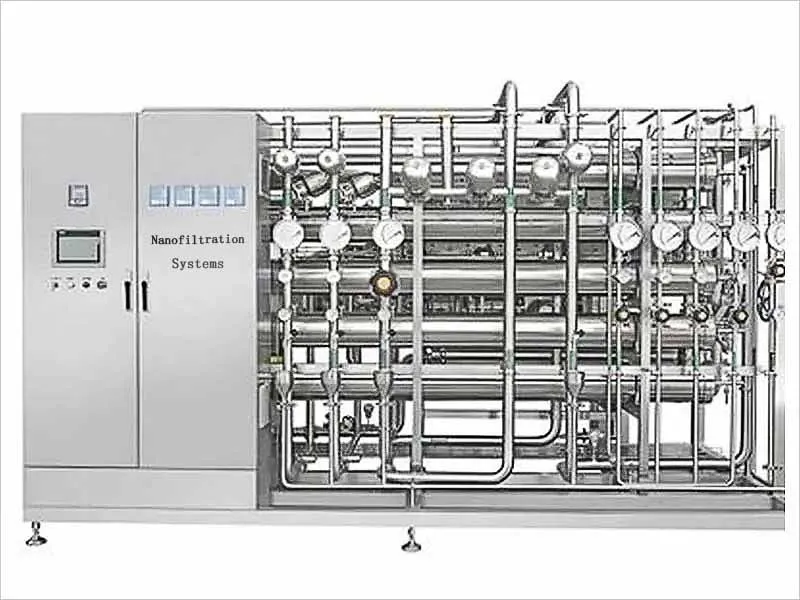

Nanofiltration (NF) System — view 1

Configure Your Spec

Select the operating configuration for a tailored quotation.

Capacity

Configuration

Current Spec Summary

Capacity
20 m³/day
Configuration
Skid-Mounted
WhatsApp

Key operating data

Capacity
5 – 1,000 m³/day
Salt Rejection
20 – 80% (divalent)
Operating Pressure
5 – 20 bar
Recovery Rate
50 – 85%

Technical Specifications

Feed WaterBrackish / surface water
Capacity5 – 1,000 m³/day
MWCO150 – 300 Dalton
Salt Rejection20 – 80% (divalent)
Operating Pressure5 – 20 bar
Recovery Rate50 – 85%
MembranePolyamide thin-film composite
Frame304 / 316L stainless steel skid
Nanofiltration (NF) System — product showcase

Product Showcase

Nanofiltration (NF) System

Product Details

Nanofiltration is a membrane technology that removes calcium and magnesium ions (water hardness) along with other contaminants such as color, bacteria and some organics. Using a semi-permeable membrane that filters particles around 0.001 micron, NF effectively softens water while reducing other impurities — without the sodium addition required by traditional salt-based softeners, making it more environmentally friendly.

Applications

Municipal drinking water softening, groundwater nitrate/color removal, dairy and beverage concentration.

Typical Applications

This system can be configured around the water source, target quality and operating conditions of projects such as:

Drinking waterFood & beverageIndustrial process

Prepare a faster quotation

Send the information below with your inquiry so our engineers can recommend the right configuration.

  • Source-water analysis or water type
  • Required flow or daily capacity
  • Target water quality or discharge standard
  • Site conditions, power supply and delivery location

Ready to move forward?

Submit an RFQ with your specs, or chat directly with our engineers on WhatsApp.
